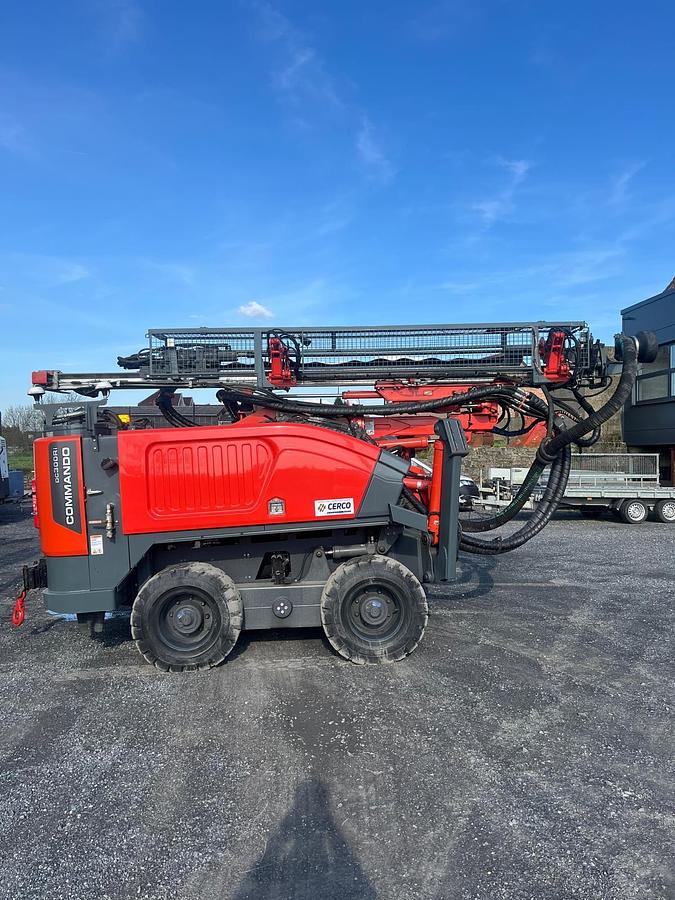

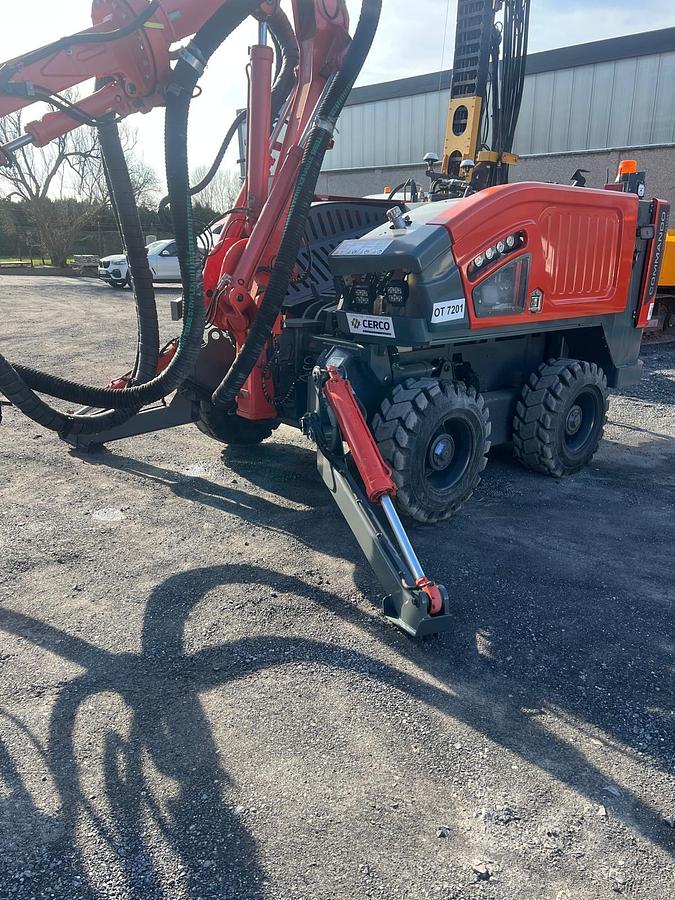

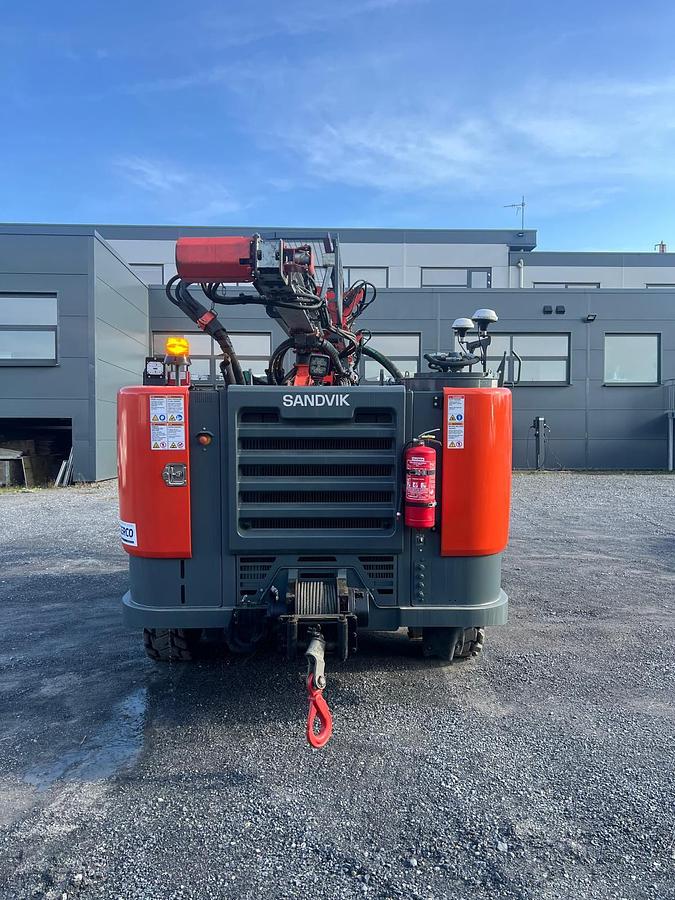

Sandvik Commando DC300

Key Features

• Hole diameter range: 37–64 mm (1½″–2½″)
• Drill rods: Compatible with R28, R32, and T35 MF rods
• Rock drill: HL300, approx. 9 kW output power
• Engine: CAT C3.6, 74.4 kW (~100 hp), compliant with Tier 4 Final / Stage V
• Air flushing: 3.0 m³/min up to 8 bar
• Mobility: Four-wheel drive, ±10° oscillation
• Transport dimensions: Height 2.85 m – Width 2.35 m – Length 5.7 m
• Weight: Approx. 6,100 kg
• Boom / reach: DB300 articulated boom, working coverage approx. 12 m², boom swing ±45°, feed tilt −15° to +45°

Productivity: Typically 450–800 m³ drilled per 8-hour shift (depending on conditions
